드론 모터
Created with Pixso. Drone Motor LN8313 120KV for 40-50inch drones/eVTOL

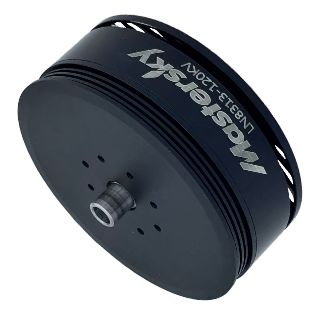

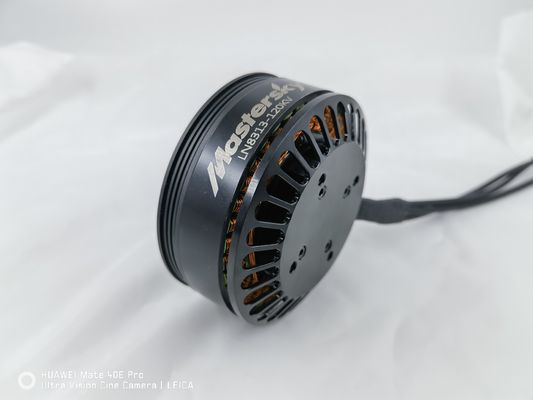

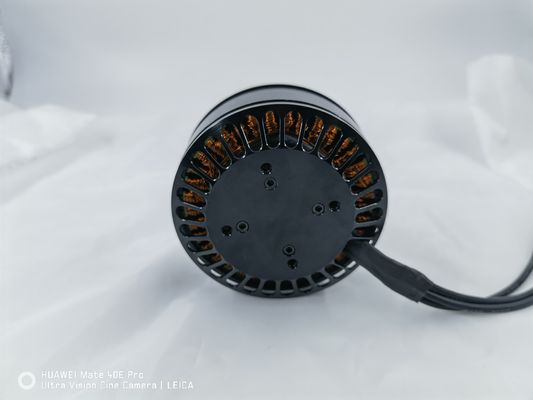

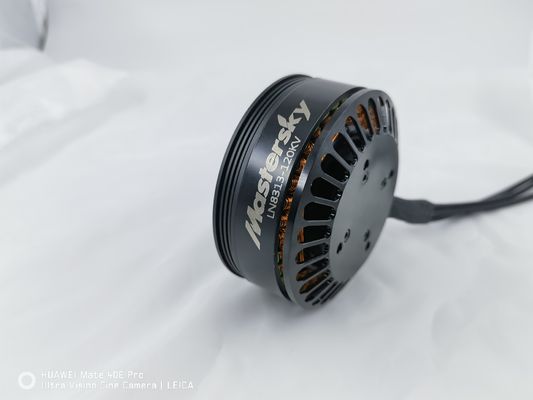

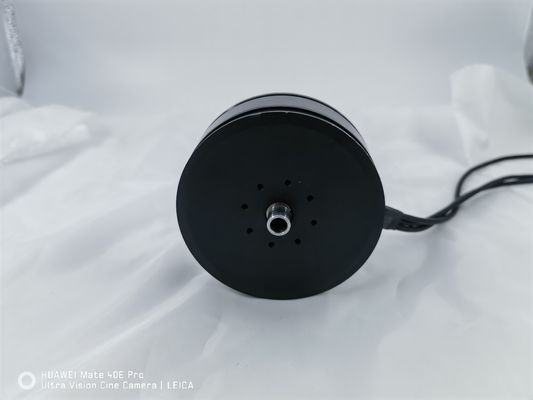

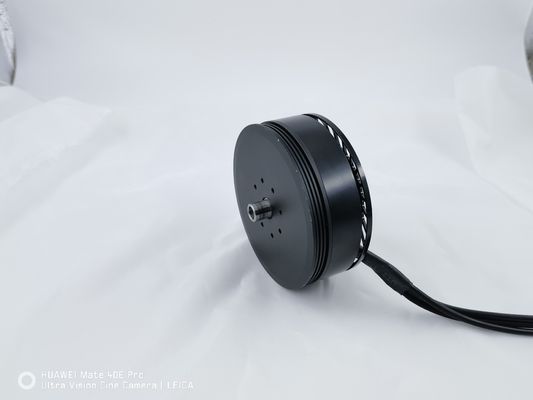

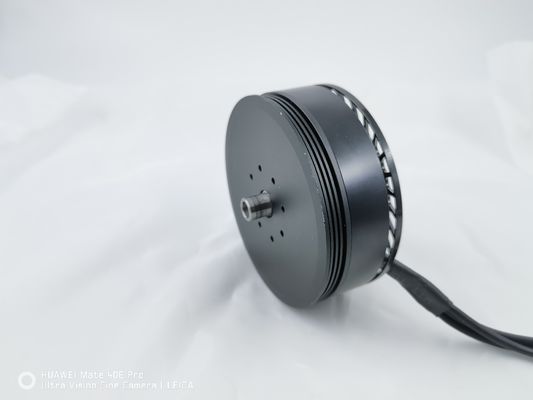

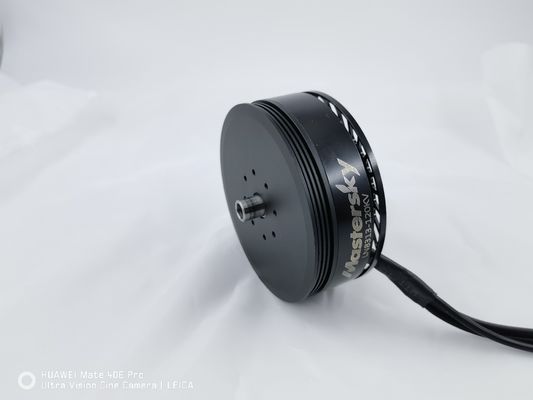

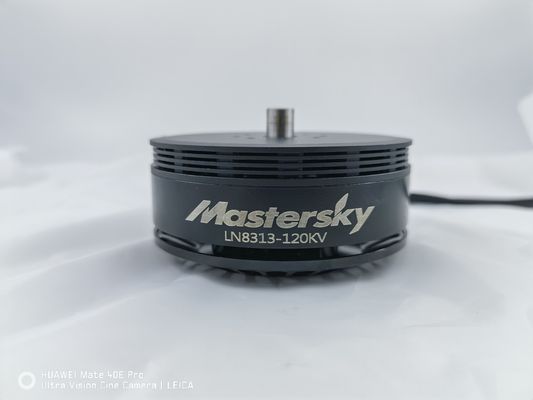

Drone Motor LN8313 120KV for 40-50inch drones/eVTOL

브랜드 이름: Retek
모델 번호: 강철 기어
모크: 1000pcs
가격: 협상 가능
배달 시간: 10 일
상세 정보
원래 장소:
중국
인증:
CCC,UL
포장 세부 사항:
25pcs/카톤
공급 능력:
10000pcs/월
제품 설명



This precision-engineered DC motor serves as a reliable power core for mid-to-large drones, ideal for commercial, industrial, and professional UAV applications. It meets modern drone needs—stable flight control and long-duration missions—making it suitable for both ready-made models and custom-built UAV projects.​



  • Rated Voltage: 60VDC
  • Motor Rotation Direction: CCW rotation;
  • Motor Withstand Voltage Test: ADC 600V/3mA/1Sec
  • No-Load Performance: 3600±10% RPM (Revolutions Per Minute) / 1.5A Max (maximum current)
  • Load Performance: 2770±10% RPM / 75.9A±10% / 13.7N·m (Newton - meter, torque)
  • Motor Vibration: ≤7 m/s²
  • Backlash: 0.01 - 0.2mm
  • Noise: ≤60dB/1m (ambient noise ≤45dB during testing)
  • Insulation Class: CLASS F
  • Motor Operation: No abnormal phenomena such as smoke, peculiar smell, abnormal noise, or end play during operation
  • Motor Appearance: Clean and free of rust
